Phoenix Nano Physio/Uro

Phénix Nano Portable: discover extreme efficiency!

Electrostimulation and biofeedback at the service of the WIRELESS musculoskeletal system with 2 stimulation channels and 2 biofeedback channels.

Graphics quality, therapeutic quality, no compromise

The effectiveness of wireless electrostimulation and biofeedback combined with the ergonomics of a tablet to develop your efficiency. Without renouncing the quality of care, you will appropriate your PHENIX NANO and master it in a few minutes. It will accompany you everywhere.

Therapeutic assistant

Quite simply and on a single clinical sign, the assistant will help you find an analgesic, exito-motor, draining program, etc. in a few seconds. You observe, you question, you evaluate the clinical signs Urogynaecology: SUI, urgency, leaks, pain... Physiotherapy: Pain, inflammation, amyotrophy, edema... The assistant finds the answers and organizes them into a global and coherent treatment .

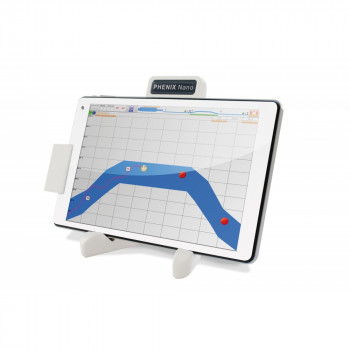

A light and practical tool

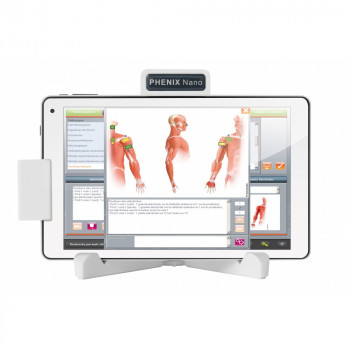

Its graphic resolution gives you unprecedented ease of use. The touch screen of this tool combined with the ergonomics of the software gives you easy access to your treatment programs. You can launch them in seconds.

Patient file

The PHENIX NANO Portable has a patient file accessible through its high resolution touch screen. You can launch your treatment from your patient file, its name and date will be memorized. Thus, it will be easy for you to duplicate it and restart it at the next session.

Wireless biofeedback

The stim/bio POD is placed on the patient. Clipped to a strap, it is connected to the probe and/or the electrodes. Wireless between the patient and the central unit, biofeedback is enriched with many exercises that are difficult to perform on a wired device. Each stim/bio POD instantly transmits and displays biofeedback curves on the screen. Rehabilitation can be conducted without cable-induced noise.

Associated electrostimulation and biofeedback

In patients who have difficulty integrating a motor pattern, the combination of wireless stimulation and biofeedback can create a sensory-motor experience for a few seconds. The patient can easily reproduce it under feedback in both orthostatic and orthodynamic. (Examples: learning the physiological refocusing of the shoulder, learning the perineal locking reflex, etc.)

PHYSIO TREATMENTS:

Amyotrophic, circulatory and trophic, muscular contractures, dermatological, digestive transit morphoesthetic, neurological, osteoarticular and tendinous, post-traumatic (ankle sprain, knee sprain, wrist fracture, elbow dislocation, etc.), rheumatological (algoneurodystrophy, adhesive capsulitis, positional neck pain, patellar chondropathy, coxarthrosis, dupuytren, gonarthrosis, lumbosciatica, PSH, sports.

URO FEMALE PERINEUM:

Stress urinary incontinence, bladder instability, dyssynergic urges, postpartum disorders, anorectal disorders, gas or material incontinence, re-education of anal continence reflexes, pain in the episiotomy, pain from dyspareunia, vaginismus, musculotendinous pain during and after partum, preparation for urethrovesical surgery.

MALE PERINEUM:

Incontinence after prostatectomy, urgency due to urethral or bladder instability, preparation for prostate surgery, diserection, premature ejaculation, re-education of anal continence reflexes.

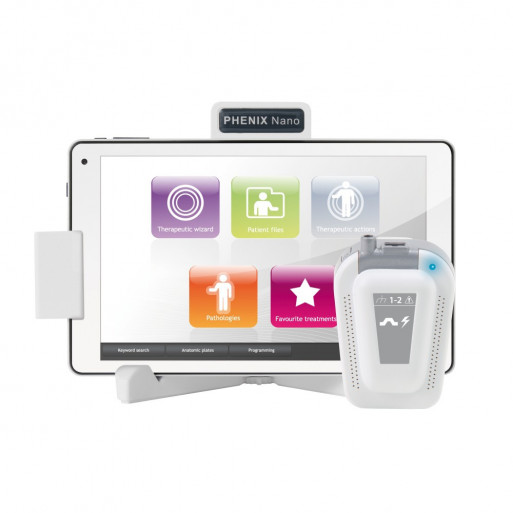

The Phénix Nano Physio/Uro comes with:

• 1 touch pad and its support
• 1 Stim/Bio POD
• 1 x 4-wire output cable
• 1 power supply to medical standards
• 1 user guide

Options available for the Phoenix Nano Physio/Uro:

• Multi-patient pod
• 1-way manometry + universal pod
• Carrying case

Technical characteristics :

Electrostimulation:

• Excitomotor currents Max intensity: 100 mA
• Adjustment in 0.5 mA steps
• Pulse width: from 30 μs to 4000 μs
• Frequency: from 1 Hz to 150 Hz.

Biofeedback:

• Scale: 0 to 2000 μv
• Guide curves

Dimensions and weight:

• Central unit: 12 x 20.6 x 1.2 cm - 400 g
• POD: 8 x 5.4 x 4.1cm - 100g
• Battery: Long Life Lithium Polymer
• Electrical safety category: Class I BF

Safety testing:

• LE PHENIX NANO Portable complies with the standard on the safety rules for electromedical devices IEC 60601-1, with the standard on electromagnetic compatibility IEC 60601-1-2, with standards EN 300 440 -2 and EN 300 328 following the recommendation 1999/519/EC for wireless communication and the safety standard for nerve and muscle stimulators IEC 60601-2-10

2 year warranty excluding accessories and batteries
