Phoenix USB Micro Full

Phénix USB Micro, go straight to the point without giving up excellence.

Wireless is now within everyone's reach!

Therapeutic assistant

Quite simply and on a single clinical sign, the assistant will help you find an analgesic, exito-motor, draining program, etc. in a few seconds. You observe, you question, you assess the clinical signs:

Urogynecology: SUI, urgency, leaks, pain...

Physiotherapy: Pain, inflammation, amyotrophy, oedema...

The assistant finds the answers and organizes them into a global and coherent treatment.

Electrostimulation

The disappearance of the wires between the central unit and the patient frees up the space around the table, simplifies the setting up of the session, and gives a lot of flexibility to the electrostimulation treatments which can now be integrated into the retraining exercises. to effort. Stimulation promotes active muscle recruitment and gives rhythm to the work and rest phases.

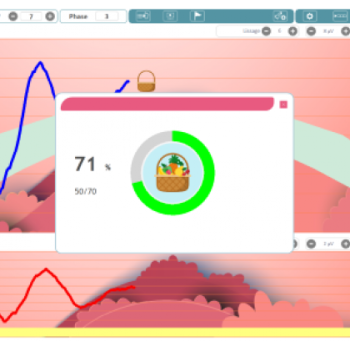

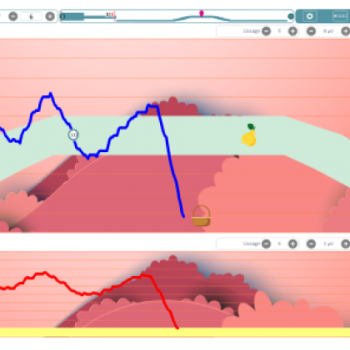

Wireless biofeedback

The stim/bio POD is placed on the patient. Clipped to a strap, it is connected to the probe and/or the electrodes. Wireless between the patient and the central unit, biofeedback is enriched with many exercises that are difficult to perform on a wired device. Each stim/bio POD instantly transmits and displays biofeedback curves on the screen. Rehabilitation can be carried out orthostatically and orthodynamically without cable-induced interference.

Associated electrostimulation and biofeedback

In patients who have difficulty integrating a motor pattern, the combination of stimulation and wireless Biofeedback can create a sensory-motor experience for a few seconds. The patient can easily reproduce it under feedback. (Examples: learning the physiological refocusing of the shoulder, learning the perineal locking reflex, etc.)

Treatment programs:

Therapeutic actions: Analgesics, Anti-inflammatories, Relaxing and spasmolytics, Galvanic / iontophoretic, Muscle strengthening, Hemophiliac muscle strengthening, Draining and trophic (with Full version) Joint mobilizations (Agonist / antagonist stimulation with Full version)

Pathologies: Amyotrophic, Muscle contractures, Dermatological, Pregnancy, Osteoarticular and tendinous, Anorectal perineo-sphincter, Urinary and genital perineo-sphincter, Post-traumatic, Rheumatological, Sports, Circulatory and trophic (with Full version), Neurological (with Full version ), Respiratory (with Full version) Pediatric disorders Retentions, Encopresis, Dyssynergies Perineal disorders

FEMALE PERINEA: Stress urinary incontinence, Mixed urinary incontinence, Bladder instability, Dyssynergies, Postpartum disorders, Anorectal disorders, Episiotomy pain, Musculo-tendinous pain of the per and post-partum, Preparation for urethro-vesical surgery, Reprogramming of the Locking reflex (with Full version)

MALE PERINEA: Incontinence after prostatectomy, Preparation for prostate surgery, Rehabilitation of anal continence reflexes, Erectile dysfunction

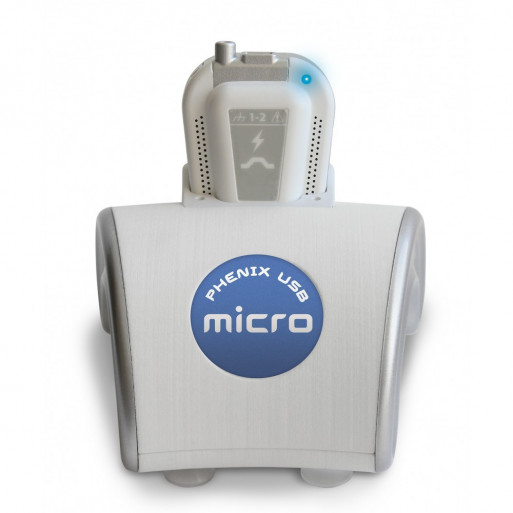

The Phénix USB Micro Full comes with:

• 1 charging station for 1 single Pod (with its charger)
• 1 Stim/Bio Pod
• 1 x 4-wire output cable
• 1 remote control
• 1 user guide

Options available for the Phénix USB Micro Full:

• 1-way manometry + Universal Pod
• 2-way manometry + Universal Pod
• Requires a PC to operate not included in the price

Technical characteristics :

Electrostimulation:

• 2 multiplexed stimulation channels per POD
• Max current: 100 mA
• Adjustment in 0.5 mA steps
• Pulse width: from 30 μs to 300 ms
• Frequency: from 1 Hz to 400 Hz
• Excitomotor, analgesic, trophic, neuroperipheral currents

Biofeedback:

• 2 biofeedback channels per POD
• Scale: from 0 to 2000 μv on 3 gain levels
• Types of display: guide curves and/or bargraph
• Sound biofeedback
• Built-in random fun and play function

Dimensions and weight:

• Central unit: 12 x 11.5 x 7 cm - 150 g
• POD: 8 x 5.4 x 4.1cm - 100g
• Electrical safety category: Class I BF

Safety testing:

• The PHENIX USB Micro complies with the standard on the safety rules for electromedical devices IEC 60601-1, with the standard on electromagnetic compatibility IEC 60601-1-2, with the standards EN 300 440-2 and EN 300 328 according to the recommendation 1999/519/EC for wireless communication and the safety standard for nerve and muscle stimulators IEC 60601-2-10. VIVALTIS is ISO 13485 certified by LNE/GMED. The PHENIX USB Micro is a class IIb device which has been designed and manufactured according to Directive 93/42/EC and its amendment 2004/47/EC. Its compliance with the directive is validated by the presence of a label marked CE 0459.

2 year warranty excluding accessories and batteries
