Phoenix Liberty

The PHENIX Liberty is the first combined electrostimulation / wireless biofeedback. You asked for it, we did it.

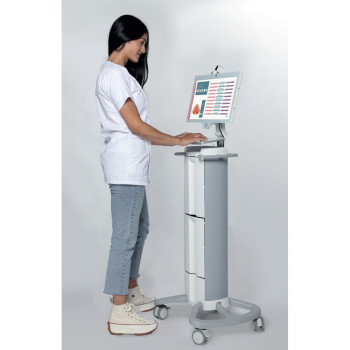

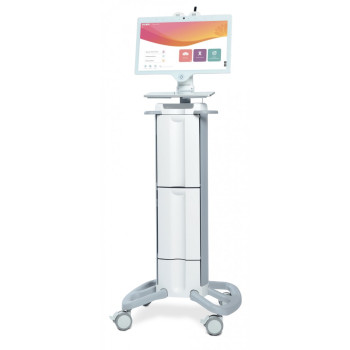

Revolutionary ergonomics. The PHENIX Liberty is made up of a central unit comprising a 15' color touch screen and one or more Pods. A Pod is a mobile stimulation and biofeedback unit which communicates with the central unit by wireless link. Each Pod has 2 stimulation channels and 2 biofeedback channels.

Thanks to this unique architecture, the PHENIX Liberty combines the power of a computerized device and the flexibility of a miniaturized device.

Wireless biofeedback . The Pod is placed on the patient. Clipped to a strap, it is connected to the probe and/or the electrodes. Without wires between the patient and the central unit, biofeedback is enriched with many exercises that were difficult to perform before. Each Pod is a range finder that instantly transmits and displays data on the central unit's screen.

Wireless electrostimulation . The disappearance of the wires between the central unit and the patient simplifies the setting up of the session, and gives a lot of flexibility to the electrostimulation treatments.

Secure communication protocol (CNRS patent) secure technology:

All Pod processing parameters can be modified in real time from the central unit. The processing data is transmitted according to a secure protocol patented by the CNRS.

Touch screen :

no more buttons or mouse, the PHENIX Liberty is controlled by finger and stylus. Selection and adjustment become simple and instantaneous.

Simple and expert software at the same time :

The software is designed to adapt to all needs, to all practices. You can select a program from the pathology or the therapeutic action, but you can also call on the expertise of your PHENIX Liberty. From the clinical signs that you provide. The software offers you a treatment and the appropriate programs.

All in one :

The PC card is integrated in the central unit. There is no more risk of conflict, no more configuration required, no more hassle of communication. You save time, safety, space and efficiency.

Scalable product :

1 Pod or 2, it's according to my needs. Today the Pelvimeter,…

Therapeutic actions

• analgesic
• control and relearning of motor command
• muscle building according to areas and types of muscles

Pathologies

• amyotrophies (treatment and prevention)
• neuroperipheral damage (partial and complete)
• muscle/joint pain
• epicondylitis
• hemiplegia
• neuromotor inhibitions
• low back pain
• RCNs
• PWDs
• joint stiffness
• muscle spasticity
• scoliosis
• perineal disorders
• pediatric disorders

The balance sheets

• Assessment of neurological damage
• Diagnostic report
• Uro reports

The Phoenix Liberty comes with:

• 1 touch screen with DAL software
• 1 Stim/Bio Pod
• 1 x 4-wire output cable
• 1 remote control
• 1 mini keyboard
• 1 touch screen stylus
• 1 console on wheels

Options available for Phoenix Liberty:

• 1-way manometry (works with Universal Pod)
• 2-Way Manometry (works with Universal Pod)
• Anorectal Assessment Kit (works with Universal Pod)
• Pelvimeter (works with Universal Pod)
• Universal pod
• Pod Stim/Bio
• Multi-patient pod
• Interferential Pod

Technical specifications :

• General electrotherapy, uro-gynecology and biofeedback (negative and relative), conditional stimulation, stimulation on EMG triggering, galvanic current, current with adjustable slope
• Touch screen + stylus
• Remote control, multi-phase programs
• Electrode placement guide
• Dynamic modification of all parameters
• Automatic detection of connected devices
• Biphasic and monophasic rectangular current
• Frequency from 1 to 400 Hz depending on the shape of the pulses
• Intensity from 0 to 100 mA in steps of 0.5 mA
• Stim taring per channel and per phase with memorization of intensities according to the phases or taring
• Patient file, backup, uros reports, voiding calendars, testing, creation of mail,...
• Mains operation (Pods on battery)
• CE0459

2 year warranty (except cables and batteries)
